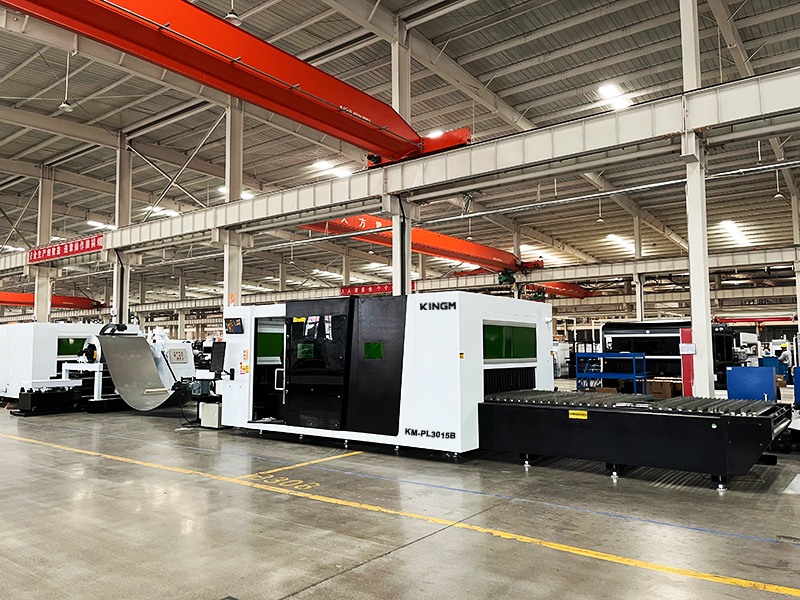

As part of KingMCNC's customized metal cutting line series, the KM-F3015B Automated Coil-Fed Laser Blanking System can be configured with various processing modules to match your specific fabrication requirements. The automated coil-fed laser blanking system is designed for automatic uncoiling, leveling, feeding, laser cutting, and unloading in one continuous production line.
Compared with traditional sheet-fed cutting, this system works directly from metal coil stock, which optimizes material utilization, reduces labor costs, and supports higher production efficiency.
It is an ideal solution for manufacturers who need to improve material utilization, lower labor costs, continuous processing, better nesting efficiency, and better production flexibility.

How Does the Automated Coil-Fed Laser Blanking System Work?

The whole process is automated and runs step by step.

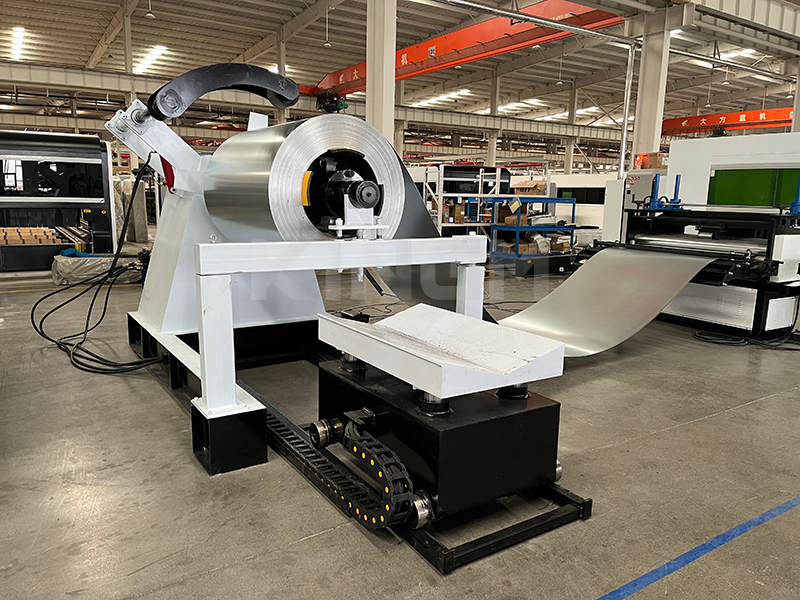

Decoiling and Feeding
The system first loads the metal coil into the production line. It is compatible with steel, aluminum, or other metal coil stock. The coil stock is then unwound and fed into the next processing module.

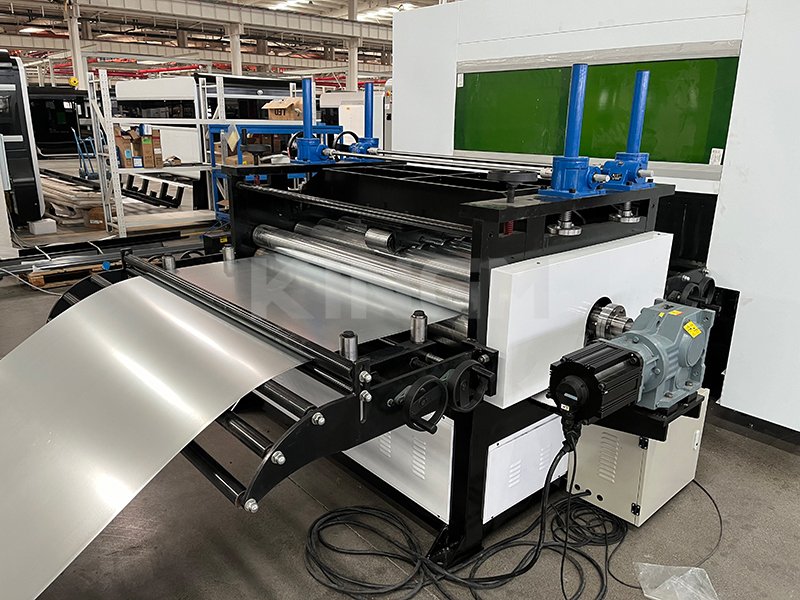

Straightening and Leveling
Before cutting, the material passes through a precision leveler. This ensures maximum flatness and eliminates coil set.

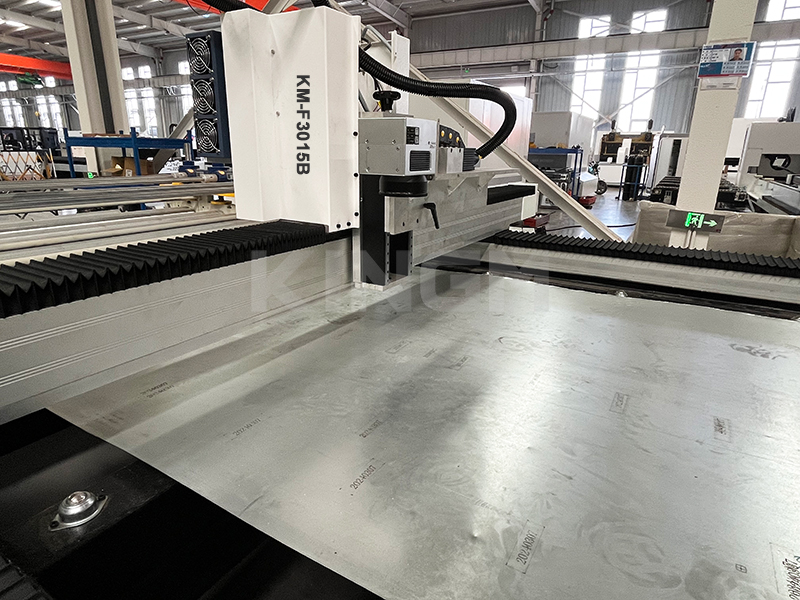

Laser Marking system
The integrated laser marking system automatically marks company logos, batch numbers, and product data onto metal sheets before cutting begins. This streamlined pre-cutting workflow eliminates tedious post-processing steps, saving valuable production time and reducing handling errors.

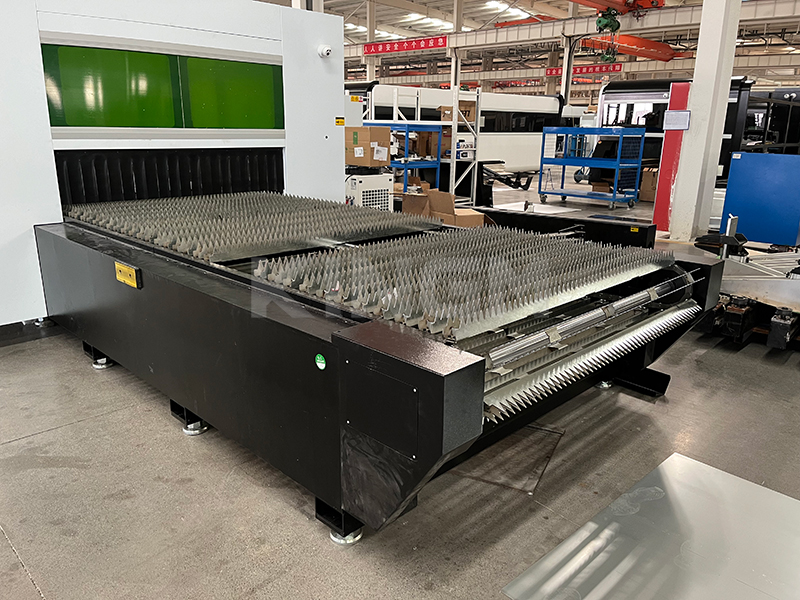

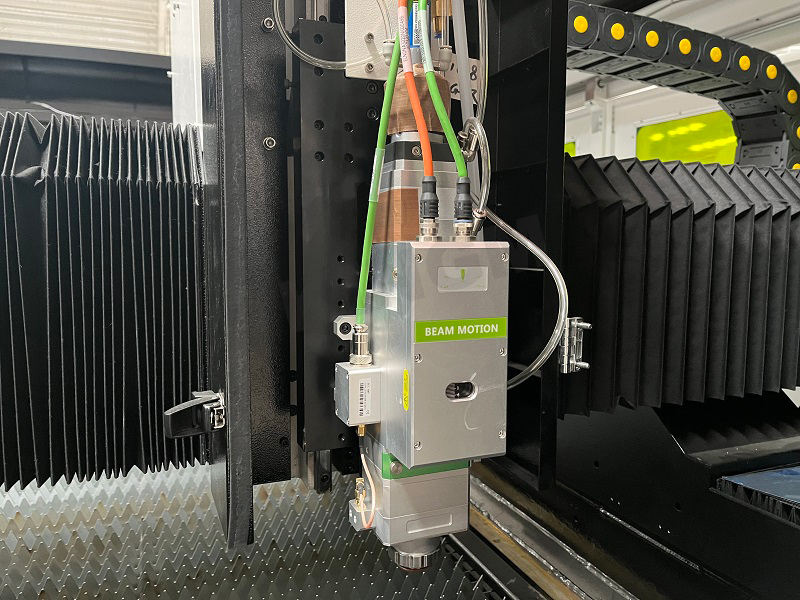

Laser Cutting
The leveled strip then enters the laser cutting area, where the laser automatically cuts the material into the custom profiles and sizes with high precision.

Automatic Unloading or Stacking (Optional Robotic unloading system)
After cutting, the strip is conveyed to the rolling table. At this stage, you can choose between the an automatic robotic stocking module or manual unloading can be selected.

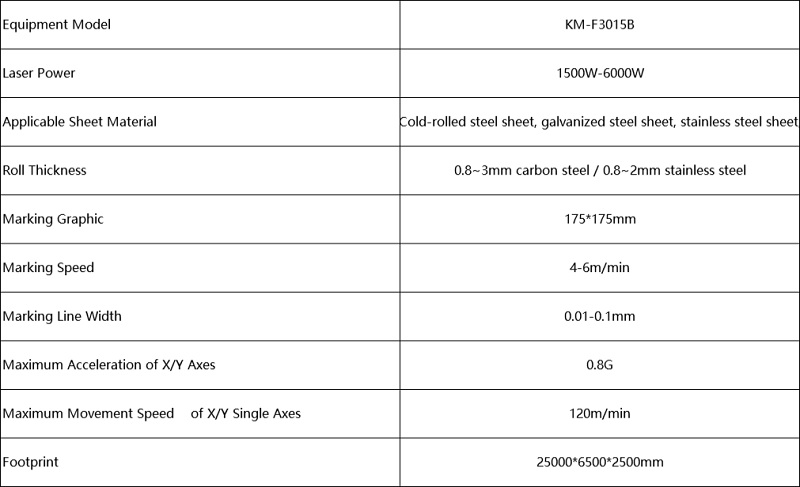

Technical Data of the Automated Coil-Fed Laser Blanking System

Key Advantages of Automated Coil-Fed Laser Blanking System

1. End-to-End processing
Only a single integrated system optimizes the workflow from coil stock to finished parts. This helps minimize labor costs and boost productivity.

2. Better Production Flexibility
The Automated Coil-Fed Laser Blanking System can process diverse cutting profiles without retooling. This helps users to meet versatile application needs, adopt to production changes, and respond to customer demands.

3. Lower Overall Production Costs
First, the system helps improve material utilization. The automatic nesting software adjusts the feeding and cutting plan based on the customer’s design, which helps minimize material waste compared with traditional blanking. It also eliminates recurring mold design and purchasing costs. In addition, the installation cost is lower than that of many traditional press systems. There is no need to dig pits for hydraulic systems or stamping machines, and no need for expensive overhead cranes in high-bay workshops. The modular, easy-to-move design makes installation more flexible.

4. Easier Maintenance
The system is designed for low-maintenance operation, which maximizes the production uptime. It eliminates the die maintenance and offers simpler service work, shorter downtime, and minimizes consumable costs. As a bonus, its compact design also optimizes the floor space.

Applications of KM-F3015B Automated Coil-Fed Laser Blanking System

Applications Materials:
This system handles a wide range of different metal coil materials, such as carbon steel, stainless steel, aluminum, galvanized steel, and other metals.

Applications Across Industries:
The high throughput, flexibility, and precision of automated coil laser cutting makes it an essential solution for capital-intensive industries.
1. Automotive Parts Manufacturing
In the automotive industry, it is primarily used for cutting safety-critical parts that require high material integrity and dimensional accuracy, such as structural panels and formed components like B-pillars and door rings. It is also ideal for cutting HVAC components, heater housings, and battery trays made from low-carbon steel, galvanized steel, and aluminum, ensuring reliable performance and safety compliance in every application.
2. Manufacturing of Large Panels and Complex Housings
It can be used for processing and manufacturing large panels and complex housings that require high surface quality and dimensional accuracy. Typical applications include elevator interior and exterior panels, HVAC ducts, electrical cabinets, and commercial kitchen equipment.
3. Fine Profiles and Special Materials
It is used in the production of kitchenware and white goods components that require clean, precise profiles. It is also suitable for electrical steel laminations, where the laser parameters can be adjusted to match or exceed stamping performance, and the process offers greater design flexibility.

Pre-Sales Support

1. Free Sample Cutting
If you need sample cutting and testing, simply send us your CAD files (.plt or .ai). We will test the cutting in our factory and provide a complete cutting video and sample detail video. If needed, we can also send the samples to you for quality inspection. KingMCNC provides free sample cutting service to show our customized solutions designed to improve efficiency and quality, together with consistent after-sales support.
2. Customized Cutting Solutions
We can provide customized solutions based on your product design and application requirements to help improve production efficiency and processing quality as much as possible.

After-sales support of Automated Coil-Fed Laser Blanking System

1. We will provide the English installation video and user manual before the machine arrive in your factory. If you have any questions with installation, operation, or adjustment, we provide 24/7 online technical support through remote methods such as email, TeamViewer, phone, WhatsApp. We also offer paid on-site installation and training services.
2. Warranty for the Automated Coil Fed Fiber Laser Blanking Line. We offer lifetime free technical support, and our after-sales department provides 24/7 English online support. The whole machine comes with a 1-year warranty, except for consumable parts. During the warranty period, we provide spare parts free of charge, except for damage caused by improper use. After the warranty period, we provide free technical diagnostics and replacement machine parts at cost.
3. We can also provide certifications such as CE and FDA.

How to Get a Quote?

If you would like to get a free quote for the Automated Coil-Fed Laser Blanking System, please tell us your material type, coil width, thickness, and production requirements. We will recommend a suitable solution according to your needs.
