Handheld Laser Welding Machines are becoming a popular choice in metal fabrication. Compared with traditional welding methods, laser welding offers a significantly faster speed, cleaner weld seams, and minimal heat distortion.
Ideal for workshops, factories, and repair companies looking for fast, reliable welding performance, the KingMCNC versatile laser welder is suitable for a wide range of materials like stainless steel, carbon steel, aluminum, and a various alloy.
Featuring intuitive operation, stable performance, and flexible mobility, this KM-F1500W handheld laser welding machines improve productivity while reducing labor hours and post-weld cleanup.

Applications of Handheld Laser Welding Machine

The fiber laser welding machine has a wide range of applications in many industries like kitchens cabinet, staircase and elevators, rack production, appliances production, stainless steel doors, and window guardrails, distribution boxes, stainless steel household products, the lighting industries, The handheld fiber laser welder is the ideal for complex and irregular welding processes, where the traditional welding methods have limitations.

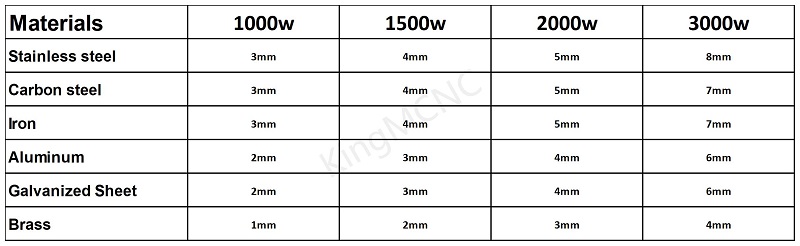

Table of Welding Thicknesses for Different Laser Powers

Features of the Handheld Laser Welding Machine

1. Available in 1000W, 1500W, 2000W, 3000W laser power for different thickness welding requirements.
2. The laser gun comes with infrared positioning for more accurate welding and cleaner weld seams.
3. The handheld welding head is light and easy to operate.
4. Different nozzles and wire feeding nozzles are available for different welding requirements.
5. The machine provides fast welding speed, deep penetration, and smooth weld seams.
6. The touch screen control system makes operation easy and stable.
7. It supports butt welding, lap welding, edge welding, splice welding, and tee welding.
8. It can perform one-sided spot welding even without access to the back side.
9. The fixed optical path supports flexible, long-distance laser welding.
10. The compact all-in-one design saves space and is easy to move.

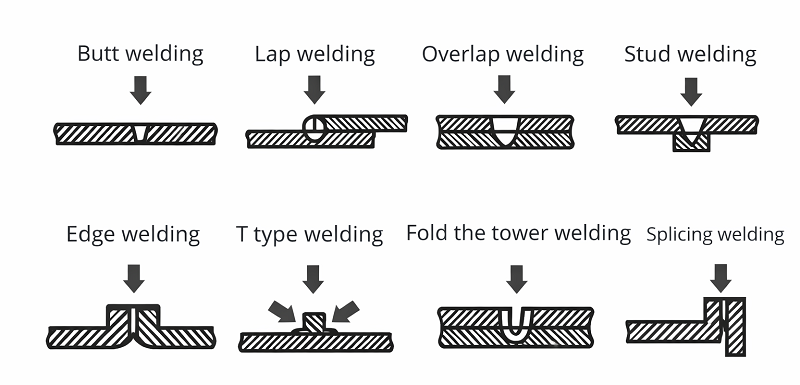

Laser Welding Joint Type

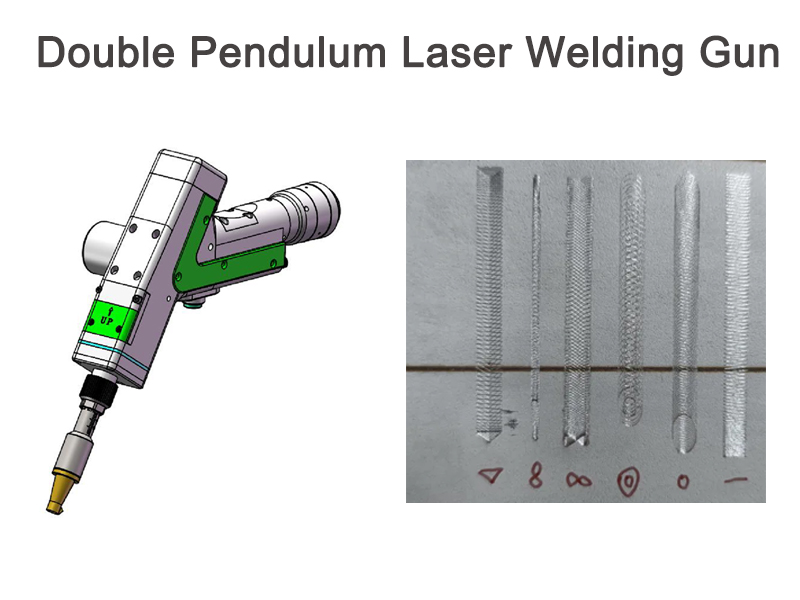

Single Wobble vs Double Wobble Laser Welding

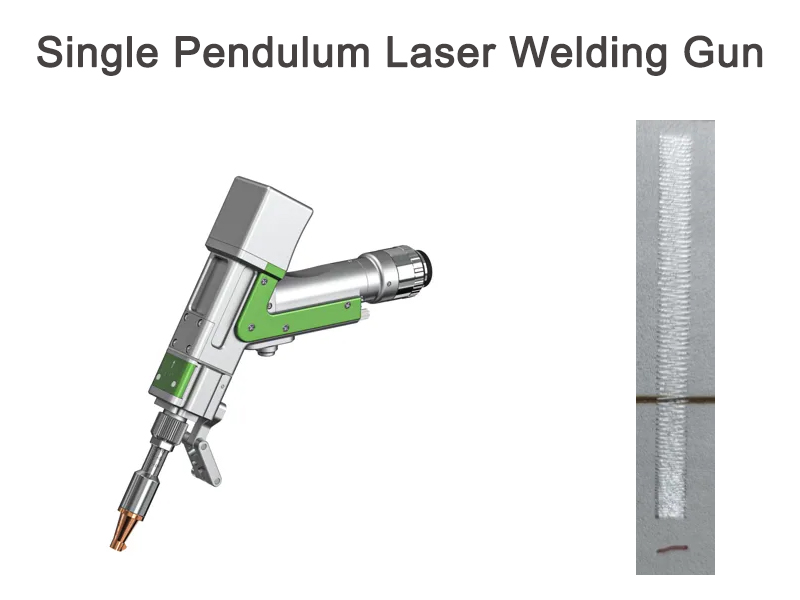

A single wobble laser welding gun utilizes a single-axis oscillation motor to move the beam back and forth, creating a narrower, highly concentrated weld seam. This makes it ideal for thin metal, high-precision welding, and tight fit-up applications.

In contrast, a double wobble laser welding gun uses a two-axis oscillating motor that creates a complex path, such as circle, creating a wider weld seam. It is the ideal solution for thicker materials, larger gaps, and uneven fit-up applications where stronger structural bridging and wider coverage are required.

How to Choose Single Wobble and Double Wobble Laser Welding?

Single wobble welding creates a narrower weld seam and is better for thin metal, precision welding, and tight fit-up.
Double wobble welding creates a wider weld seam and is better for over 3 mm materials, larger gaps, and uneven fit-up.

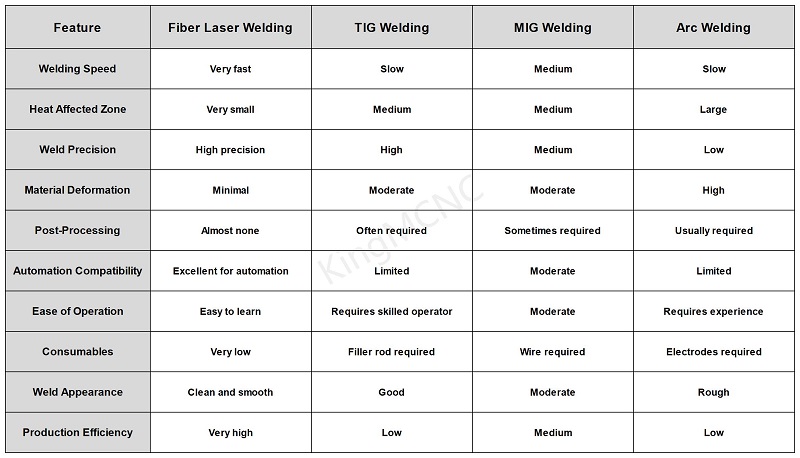

Advantages of Laser Welding Compared To TIG/MIG/ARC Welding Methods

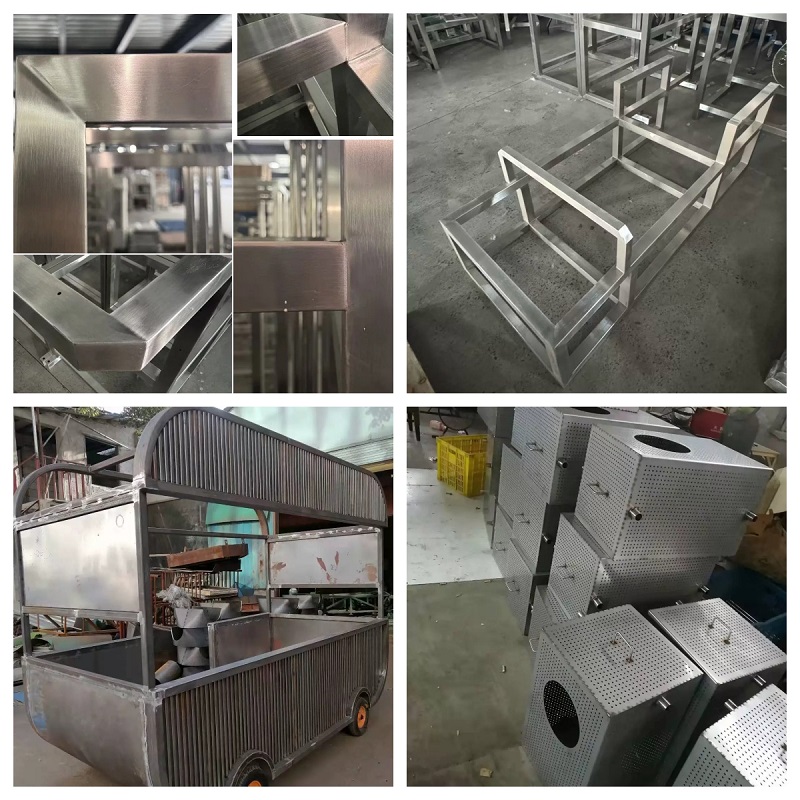

Handheld Laser Welding Machine Samples

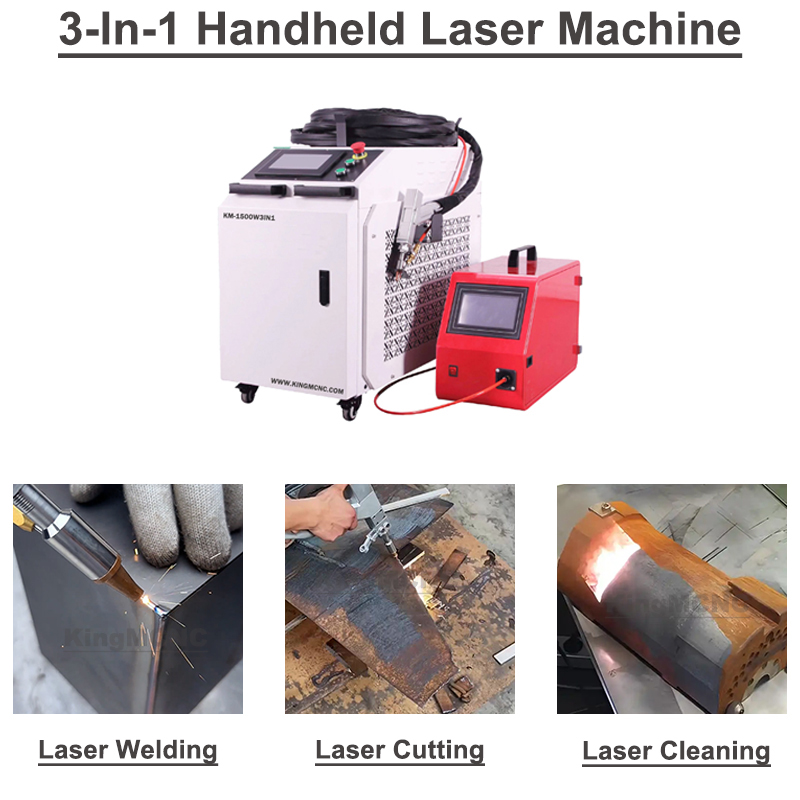

Optional: 3-in-1 Handheld Laser Welding, CLeaning, Cutting Machine

Frequently Asked Questions

1. What is a handheld fiber laser welding machine?
A handheld fiber laser welding machine is a metal welding machine that uses a focused laser beam to join metal parts. It offers flexibility of manual operation, making it ideal for workshops, fabrication, and on-site welding applications.
2. What materials can this metal welding machine weld?
It can weld stainless steel, carbon steel, iron, aluminum, galvanized sheet, brass, and other common metals.
3. What is the maximum welding thickness of the KingM CNC handheld laser welding machine?
The welding thickness depends on the material type, laser power, and welding settings. Different power options support different welding thicknesses.
4. What power options are available?
Common power options include 1000W, 1500W, 2000W, 3000W, and 6000W.
5. Is the laser metal welder easy to use?
Yes. The handheld design and touch screen control system make the machine easy to learn and operate.
6. Can beginners use KingM CNC machine?
Yes. After basic training, beginners can learn the main operation steps in a short time.
7. Can this machine work with a wire feeder?
Yes. KingM CNC includes a wire feeder as the standard equipment with the handheld laser welding machine.
8. Is laser welding better than TIG welding?
For many applications, yes. Laser welding is usually faster, cleaner, and easier to use than TIG welding.
9. What welding types does this machine support?
It supports butt welding, lap welding, edge welding, splice welding, tee welding, and spot welding.
10. Is the machine suitable for factory use?
Yes. It is suitable for workshops, metal fabrication shops, repair work, and industrial production.
11. How can I choose the right machine?
Send us your material type, thickness, and welding application. We will recommend the most suitable machine configuration and a free quote for your specific need.
