Today, most manufacturers require permanent, ultra-crisp markings for production traceability and strict quality control. This KingM CNC UV laser marking machine is the perfect choice for accomplishing those goals.
Suitable for both soft and hard materials, the UV laser marking machine uses a short-wavelength 355nm laser to mark extremely fine lines onto the surface. With the "cold marking" technology, the UV laser engraver provides a mark without generating significant heat, thereby minimizing the risk of material damage, deformation, or performance alteration.

Plastic, Glass Laser Etching Samples Of Ultra-High Precision UV Laser Marking Machine

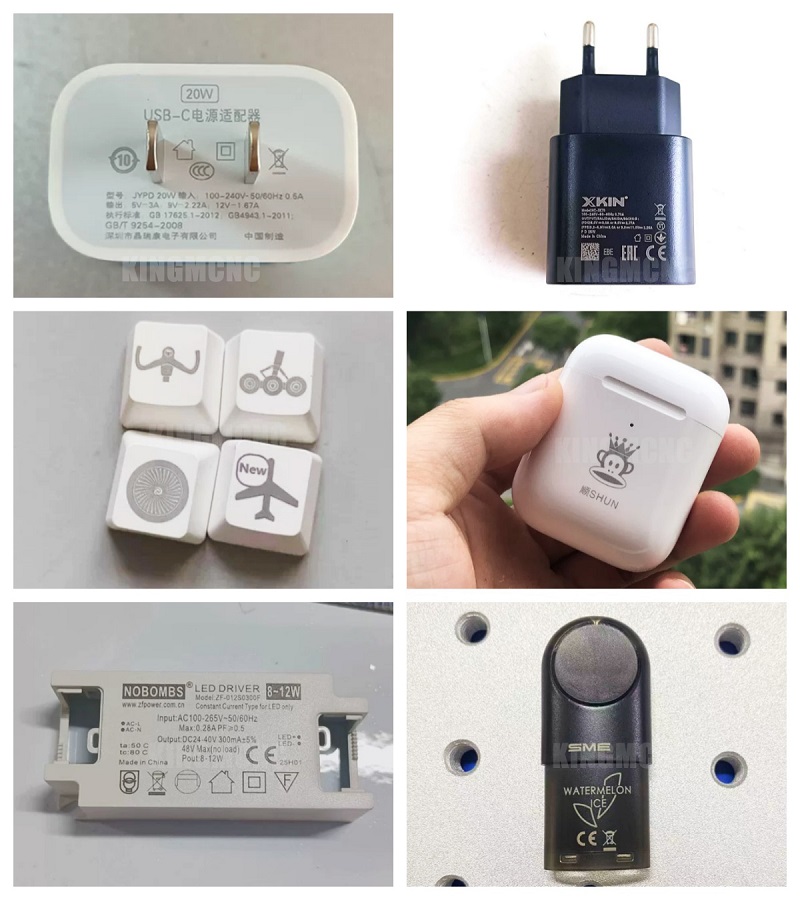

Personalized Custom Charger label By UV Laser Marking Machine

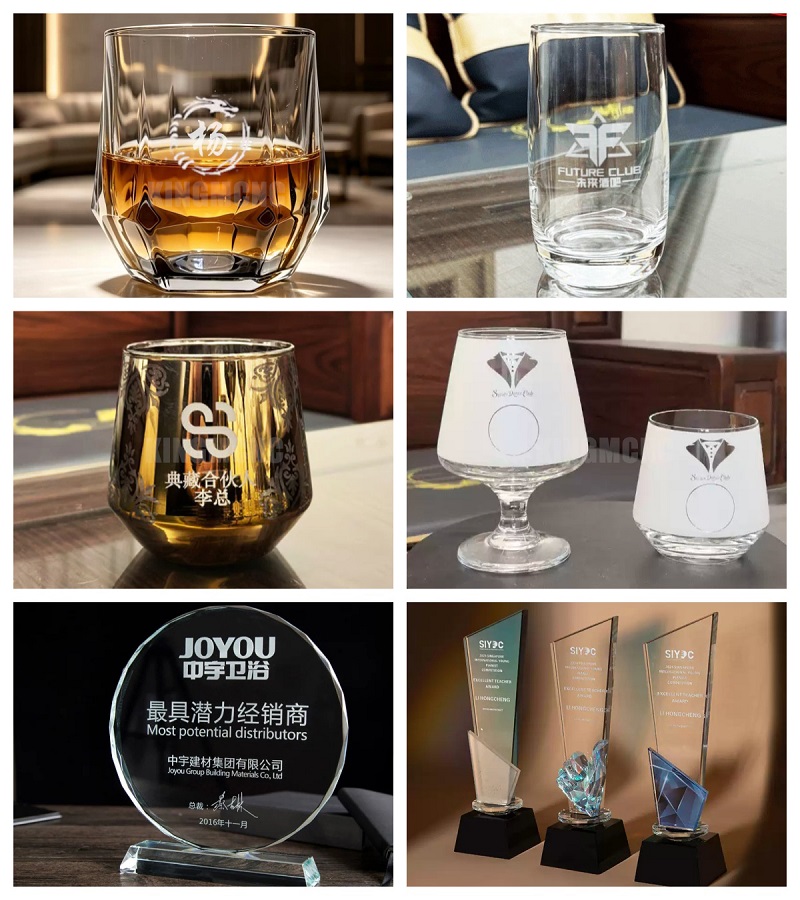

Custom Etched Photo And Words Wine Glass By UV Laser

Industries of Ultra-High Precision UV Laser Marking Machine

1. Electronics: It marks chips, circuit boards, and flexible boards.
2. Medical: It marks surgical tools and implants.
3. Packaging: It marks cosmetic, food, and drug packages.
4. Technology: It marks QR codes on glass and parts for telecom.
5. Consumer goods: It marks coated metal, plastic, and gifts.

Features of the Ultra-High Precision UV Marking Machine

• Ultra-High Precision Marking: The ultra-fine focused spot of 355nm UV light enables extremely precise marking, with a minimum character size of 0.2mm.

• Non-Destructive Glass Marking: The ultra-fine focused spot of 355nm UV laser ensures the glass surface remains intact during marking. Because there’s no thermal effect, the wafer will not warp or deform, making UV laser the ideal solution for precision glass marking applications.

• Minimal Thermal Damage: The heat-affected zone is extremely small, effectively minimizing thermal effects. Cold marking prevents substrate warping and material alteration, preserving the material's mechanical and chemical properties.

• Strong Software Compatibility: This UV laser marking machine is compatible with software such as CorelDraw, AutoCAD, and Photoshop, and supports file formats such as PLT, PCX, DXF, and BMP.

• Wide Material Compatibility: Suitable for a wide range of materials and applications, including LED line engraving, 3C products, and silicon processing. UV laser marking machines can be used to mark a variety of items, from precision biomedical devices to durable industrial parts, without compromising surface quality.

• Reduced operating costs: The device is stable, compact, energy-efficient. It requires no consumables and very little maintenance, making it more cost-effective than traditional marking methods.

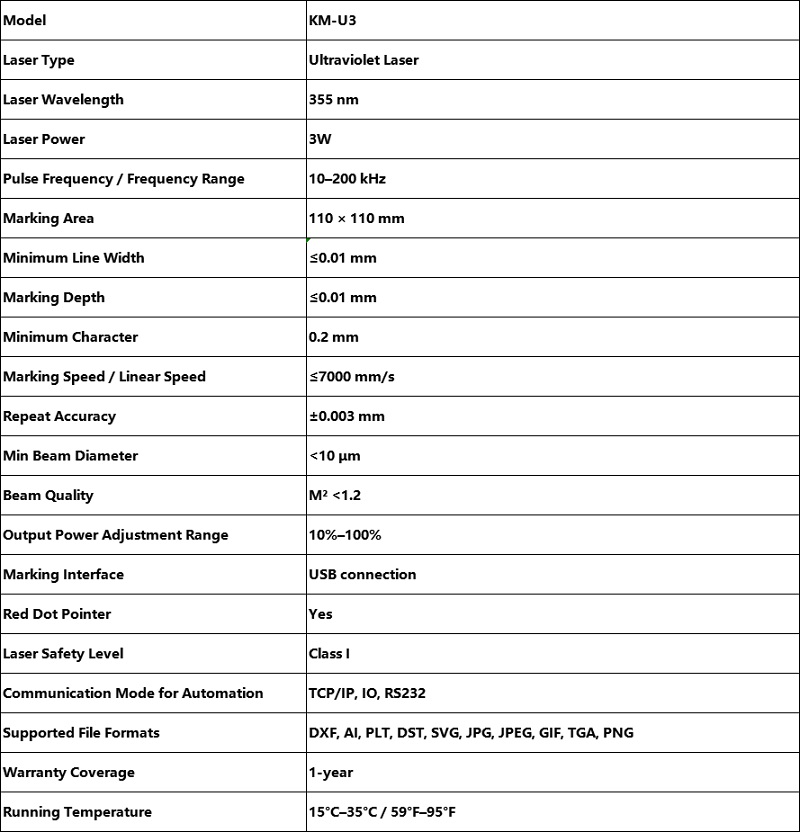

Technical Parameters of Ultra-High Precision UV Marking Machine

Frequently Asked Questions

1. What is the UV laser marking machine?
The UV laser marker is a laser marking machine that uses a 355 nm UV laser beam for low-heat marking and high-precision.
2. What materials can a UV laser marking machine mark?
It can mark plastic, electronics, glass, thin films, medical packaging, and other delicate materials.
3. Why choose UV laser marking instead of CO2/Fiber/ Another laser marker?
UV laser marking creates less heat, which helps reduce melting, burning, and deformation on sensitive materials.
4. Is UV laser marker good for plastic?
Yes. It is widely used for plastic marking, especially on materials that are difficult for other laser types.
5. Can UV laser mark glass?
Yes. The UV laser marker is suitable for glass marking and can create clear marks with reduce risk of cracking.
6. Is the machine suitable for industrial use?
Yes. It is suitable for marking plastics, glassware, medical equipment, electronics, and industrial identification marking.
